Concrete Protection & Waterproofing system - CWS100

 Q 1. What is CWS100 Concrete protection & Waterproofing system?

A:  CWS100 is a spray-applied concrete waterproofing and concrete protection system designed to waterproof cured concrete and reduce water ingress. It penetrates the concrete surface and reacts within the concrete matrix to form a moisture-resistant crystalline/CSH-based structure.

CWS100 is suitable for terraces, podiums, parking decks, water tanks, swimming pools, STPs, planters, bridges and other concrete structures.

2. How does CWS 100 Waterproof Concrete?

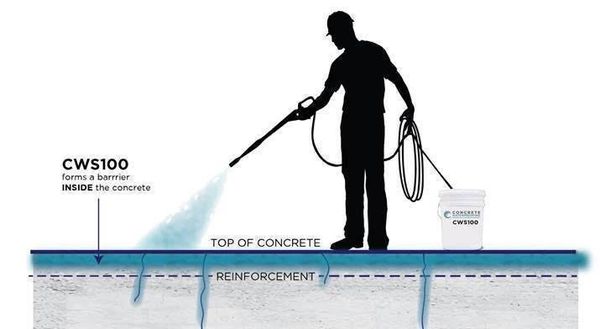

CWS100 is applied to the concrete surface using a low-pressure spray application. The material penetrates the concrete and reacts with components within the concrete to form a calcium silicate hydrate (CSH) gel structure.

This helps reduce capillary water penetration and provides long-term protection against water ingress.

 3. Is CWS100 a waterproofing membrane?

No. CWS100 is not a conventional waterproofing membrane.

Unlike APP membranes, PVC membranes or other sheet membranes, CWS100 becomes an integral part of the concrete surface and does not create a separate membrane layer.

This eliminates many problems associated with membrane punctures, peeling, delamination and damage during subsequent work.

 4. Can CWS 100 be applied on existing or cured Concrete?

Yes. One of the major advantages of CWS100 is that it can be applied to existing cured concrete structures, subject to proper surface preparation and assessment.

It can therefore be considered for waterproofing renovation and concrete rehabilitation projects where removing an existing structure or installing a new membrane may be difficult.

 5.Where can CWS100 be used?

CWS100 can be considered for a wide range of concrete waterproofing applications, including:

• Concrete terraces and roofs
• Residential and commercial podiums
• Basement and parking areas
• Water tanks and reservoirs
• Swimming pools
• STP and wastewater structures
• Planters
• Bridges and infrastructure
• Industrial concrete structures
• Hospitals and institutional buildings
• Data centres and critical infrastructure
• Solar rooftop concrete structures

 6. Can CWS100 be used for Terrace Waterproofing?

Yes. CWS100 can be used as a concrete waterproofing solution for suitable concrete terraces.

Because it does not depend on a conventional exposed membrane, it can be particularly useful where the objective is to protect the concrete itself while avoiding additional membrane layers.

The concrete surface must be properly prepared before application.

7. Can CWS100 be used for Podium Waterproofing?

Yes. CWS100 is suitable for consideration in podium slabs, parking decks and other large concrete areas where water ingress can cause deterioration of concrete and reinforcement.

Its integral approach to concrete protection can be advantageous in areas exposed to traffic and subsequent construction activities.

8. Can CWS100 Seal Cracks in Concrete?

CWS100 can help self-seal suitable hairline cracks through its crystalline/CSH reaction mechanism.

It is important to distinguish between hairline or static cracks and structural or actively moving cracks. Larger, structural or moving cracks require appropriate crack repair treatment before waterproofing.

9. What is the crack -bridging or crack - sealing capability of CWS100?

CWS100 is designed to address fine/hairline cracking and water ingress through concrete. The manufacturer's technical performance information indicates sealing capability for static cracks up to approximately 2.2 mm, subject to the specific application and substrate conditions.

Structural and moving cracks should be separately evaluated and treated.

10. Does CWS100 Require a protective screed?

One of the advantages of CWS100 is that it does not require a conventional protective screed merely to protect a waterproofing membrane, because there is no separate sheet membrane.

However, the final construction build-up should always be designed according to the intended use of the surface, traffic, finishes and project requirements.

11. How long does CWS100 waterproofing last?

CWS100 is designed as a long-term concrete waterproofing and protection system. The system is supported by a 25-year warranty, subject to the applicable manufacturer's warranty terms, substrate conditions and correct installation.

Because the treatment becomes integrated with the concrete rather than functioning as a thin exposed membrane, it is designed to provide durable concrete protection.

12. Is CWS100 suitable for Drinking water concrete storage tanks?

CWS100 has certification information for NSF/ANSI/CAN 61-2020, making it suitable for consideration in potable-water-related applications where the project specification and certification requirements are met.

The complete system and application should always be checked against the specific potable-water project requirements.

13. Is CWS100 an environment Friendly waterproofing?

CWS100 is a water-based system and is promoted as zero VOC and free from petroleum solvents.

This makes it an attractive option for projects where environmental considerations, low odour and reduced use of solvent-based waterproofing materials are important.

14. Does CWS100 Waterproofing protect concrete from Corrosion?

CWS100 helps reduce the movement of water and aggressive substances into concrete. By reducing moisture ingress, it can contribute to concrete durability and reinforcement corrosion protection.

It should, however, be considered as part of an overall concrete protection strategy rather than as a substitute for structural repair or dedicated corrosion treatment where required.

15. Is CWS100 suitable for Industrial structures?

Yes. CWS100 can be considered for various industrial concrete waterproofing and concrete protection applications, including tanks, process areas, water-retaining structures, industrial floors and other suitable concrete structures.

Dolphin Enterprise can assist with assessing the application and recommending an appropriate waterproofing system based on the site conditions.

16. Can CWS 100 be used on parking decks and areas with high traffic?

Yes, subject to the specified system build-up and project requirements. CWS100 can be used for suitable parking decks and trafficable concrete areas.

The manufacturer's information indicates that treated surfaces can become trafficable within a relatively short period under appropriate conditions.

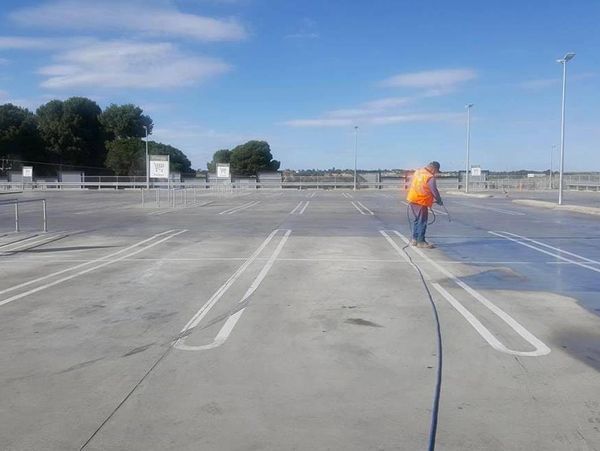

17. How is CWS100 applied?

A typical application involves:

Inspection and preparation of the concrete surface.

Cleaning and removal of contaminants, laitance and loose material.

Treatment of cracks, joints and other defects as required.

Application of CWS100 by low-pressure spray.

Appropriate curing/watering as specified.

Inspection of the completed waterproofing treatment.

Actual application procedures should follow the manufacturer's technical data sheet and project-specific specifications.

18. How quickly can the site be used after the CWS100 application?

Under suitable conditions, CWS100 can become trafficable within approximately 2–6 hours, while the required watering/curing process generally begins after application.

Actual times depend on temperature, humidity, substrate condition, application rate and project requirements. The manufacturer's current technical instructions should be followed.

19. Is CWS100 a superior waterproofing?

CWS100 and  membranes are different waterproofing technologies, and the right solution depends on the structure and project requirements.

Membrane systems create a separate waterproofing layer, while CWS100 is designed to treat and protect the concrete itself.

For a project involving cured concrete, podiums, parking decks, water-retaining structures or difficult-to-access areas, CWS100 may offer advantages. For other applications, an APP membrane or another system may be more appropriate.

A site-specific technical assessment is recommended before selecting the system.
